Yes, acoustic panel thickness matters, but it is not a shortcut to a meaningful acoustic specification. Thickness affects how much porous material is available for sound to travel through, which can change the frequencies a panel absorbs most effectively. Yet thickness cannot be read in isolation. A project also needs to consider the material’s airflow properties, density, panel location, mounting conditions, room volume, and the type of sound that needs control. This article explains how to use thickness and NRC together without reducing either to a marketing number.
Acoustic panel thickness usually changes absorption because it changes the depth of the porous absorber.
NRC acoustic panels should be compared only when test conditions and mounting arrangements are disclosed and sufficiently similar.
Density can support rigidity and acoustic behavior, but a denser panel is not automatically a better absorber.
Direct mounting and stand-off mounting can produce different measured outcomes for the same panel.
A single-number rating cannot replace frequency data when a project has a specific noise or speech objective.
Porous absorbers work through air movement. Sound causes small pressure and velocity changes in the air; when that movement enters a fibrous or open-pore panel, resistance within the structure dissipates part of the acoustic energy. The thickness of the panel helps determine how much material is available for that interaction. With all other conditions equal, a thicker panel gives sound a longer path and tends to extend useful absorption toward lower frequencies.
The phrase “all other conditions equal” is essential. A change in thickness may come with a change in mass per unit area, density, facing, compression, or mounting. Those changes can alter the result. For example, a panel that is compressed to gain stiffness may not behave like a thicker, open structure. A decorative surface layer may also affect how readily sound enters the absorber. Professional comparison begins by confirming what is actually being compared, not merely reading the nominal panel depth.
This is why acoustic panel thickness should be viewed as a design parameter. It establishes possible absorption depth and construction depth. It does not, by itself, state an NRC value, a frequency response, a room outcome, or an insulation rating. A supplier’s published data must connect each result to the exact specimen and test arrangement.
The Noise Reduction Coefficient is a single-number expression based on selected frequency-band absorption values. It is widely used because it gives architects, buyers, and contractors a convenient first comparison point. In a suitable comparison, a higher NRC commonly indicates more average sound absorption under the stated conditions. That can be useful when choosing between similar absorptive panels for general reverberation control.
However, NRC is not the same as a sound absorption coefficient at every frequency. It does not show whether a panel is especially effective in the range most relevant to speech, music, equipment, or HVAC noise. It does not reveal how the result changes when the panel is placed over an air cavity. It also does not show whether the material is appropriate for the physical demands of a project. Treat NRC as a doorway to technical review, not the end of it.
Question | Why it matters | What to request |
|---|---|---|
What is the tested thickness? | A published rating may apply only to one build-up | Nominal and tested thickness of the specimen |
How was the panel mounted? | Direct mounting, suspension, and cavities can differ | Mounting designation and installation description |
What is the material construction? | Facing, density, and backing influence behavior | Material, density or mass, finish, and backing |
Which frequencies matter in the room? | NRC does not show all frequency detail | Full absorption table or curve |
How much treatment is planned? | Product performance does not equal room performance | Area schedule and preliminary placement plan |
Porous material attached directly to a rigid wall sits at a boundary where air movement is limited. Moving the same panel away from that wall with an air cavity changes the relationship between the absorber and the reflected sound field. Depending on depth and configuration, this can improve performance in a lower portion of the spectrum. That is why acoustic panel mounting conditions must be written into the specification rather than left to the installer’s preference.
The practical implication is straightforward: do not compare a panel tested with a cavity to another panel tested flat against a hard surface as if their NRC values describe the same installation. The same caution applies to ceiling systems, baffles, and freestanding dividers. These formats interact with sound differently because more surface area may be exposed and because the mounting geometry changes the acoustic field.
If a project has limited wall depth, a thoughtful mounting approach may be more valuable than changing to a thicker face panel everywhere. Selected wall zones, ceiling elements, or spaced systems can create acoustic depth where it matters most. Coordination is still required for structural support, fire strategy, cleaning, access, edges, and tolerances. A performance claim should be based on the intended assembly, not a best-case arrangement that will not be built.
Acoustic panel density is often discussed as though higher mass automatically means more absorption. In porous absorbers, the relationship is more nuanced. Density influences fiber packing, rigidity, handling, machining behavior, and airflow resistance. A useful panel needs a structure that allows sound energy to enter and dissipate. If the structure is too open, it may not create enough resistance. If it is too compact for the application, more sound can be reflected rather than absorbed.
For that reason, a buyer should not convert a density number into an acoustic promise. Compare density together with thickness, product construction, and laboratory data. It is also helpful to distinguish density from surface mass. Two panels can share a nominal density while having different thicknesses and therefore different mass per unit area. A heavier panel is not automatically the better choice for a room that needs absorption rather than sound blocking.

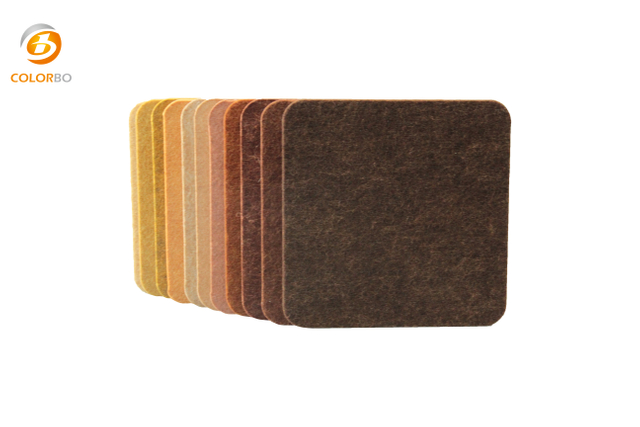

ColorBo lists a 9mm PET acoustic wall felt panel and a 12mm PET acoustic panel with distinct stated thicknesses and surface weights. They illustrate why a procurement schedule should identify the exact panel rather than assuming that all PET products with a similar appearance have the same build-up or acoustic data.
An office with hard desks, glazing, exposed structure, and frequent conversation normally needs better control of reflections in the speech range. In that setting, a low-profile or medium-depth porous panel may be appropriate if the treatment area and placement are sufficient. The goal is not to eliminate all liveliness; it is to reduce excessive reverberation and distraction while keeping the interior usable and visually coherent.
A recording, rehearsal, or media room can demand more analysis. The same space may have high-frequency reflections, flutter echo, modal bass buildup, and uneven decay. Adding thin panels can improve the first two without adequately addressing the latter. The solution may combine wall absorbers, ceiling treatment, and targeted low-frequency elements. It should be developed from the room geometry and use rather than copied from a generic panel schedule.
In a commercial lobby, restaurant, classroom, or retail environment, the balance may include appearance, cleanability, impact exposure, code requirements, and crowded service zones. Here, the best acoustic panel thickness is often the one that delivers a reliable improvement within the available construction depth while allowing enough area to be treated. A very thick system with too little installed area can be less useful than a well-distributed, lower-profile scheme that fits the project.
Ask for documentation before a panel is approved. It should identify the sample, thickness, mounting condition, method, and frequency results. If the project needs a fire classification, emissions documentation, or other product requirement, verify that information for the exact item and target market separately from acoustic performance. Never assume that a characteristic shown for one finish, thickness, or region automatically transfers to another.
Where a formal room target is required, use a qualified acoustician or project professional to connect material data to room calculations and field conditions. The calculation needs room volume, finishes, furniture, ceiling geometry, occupancy, and the proposed distribution of treatment. This is particularly important for large spaces and applications with voice privacy, education, performance, or equipment-noise requirements.
First, describe the unwanted condition in ordinary language: excessive echo, poor speech comfort, music-room imbalance, or harsh equipment-room reverberation. Then identify the surfaces that can receive treatment and the maximum depth available. Request the same documentation package from each candidate: material construction, exact thickness, mounting detail, frequency absorption data, and any required compliance documents.
Next, make the comparison like-for-like. Separate decorative panels, direct-mounted absorbers, cavity-mounted assemblies, ceiling products, and purpose-designed low-frequency treatment. Do not collapse them into a single price-per-square-metre figure. The installed system, including trim, fixtures, substrate preparation, and access coordination, affects value and risk.
Keep a record of any design assumption used in the comparison. If one option relies on an air cavity, a different ceiling height, or treatment in a location that cannot actually remain exposed, its apparent advantage may disappear during coordination. A short schedule that lists panel thickness, mounting build-up, and treated area for each option makes later changes visible. It also gives the contractor a clearer basis for pricing the installed work rather than only the board material.
Finally, review the layout. Panels need to be where they intercept meaningful reflected sound, not only where they are most visible. A coordinated design can use wall fields, ceiling elements, partitions, or shaped surfaces to support the room’s function. ColorBo’s acoustic material categories give designers several visual formats, but the selection should remain grounded in the particular room and verified product data.
Acoustic panel thickness matters because it contributes to the depth available for porous sound absorption. It does not, on its own, tell a buyer how a room will perform. NRC is useful for first comparisons, but only when the tested thickness and mounting conditions are clear, and it should be supplemented by frequency data for demanding applications. ColorBo develops and supplies acoustic material products in multiple panel formats; the correct selection is the combination of thickness, construction, mounting, and placement that matches the project rather than the largest number on a data sheet.
It can, especially when comparing similar porous materials under the same mounting conditions. The relationship is not automatic because density, facing, backing, and test setup also affect the result.
Not necessarily. It may indicate stronger average absorption under a stated test condition, but it does not show every frequency or whether the product suits the proposed installation and room objective.
Direct mounting places the panel against the rigid boundary. An air gap creates a cavity behind it, which can alter absorption behavior. Use data for the intended configuration.
No. Density affects airflow resistance and rigidity, but too much compaction can be counterproductive for a porous absorber. Evaluate the full product construction and test results.
It may improve general room absorption but should not be assumed to solve a dedicated low-frequency issue. Lower-frequency control normally requires an appropriately designed deeper treatment strategy.
