Wooden Acoustic Sound Absorption Diffusion Wall Panel
Home » Products » Acoustic Wood Panel » Grooved Acoustic Panel » Wooden Acoustic Sound Absorption Diffusion Wall Panel
Share to:

Wooden Acoustic Sound Absorption Diffusion Wall Panel

Code: HT11

Size: 2400*133mm

Thickness: 15mm

Base Material: ECO MDF/ Pink MDF/ Black MDF

Surface: Melamine/ HPL/ Painting

Back material: Black Felt

Fire rating: A / B

Eco-Friendly: E0

NRC: 0.7-0.9


Products Introduction

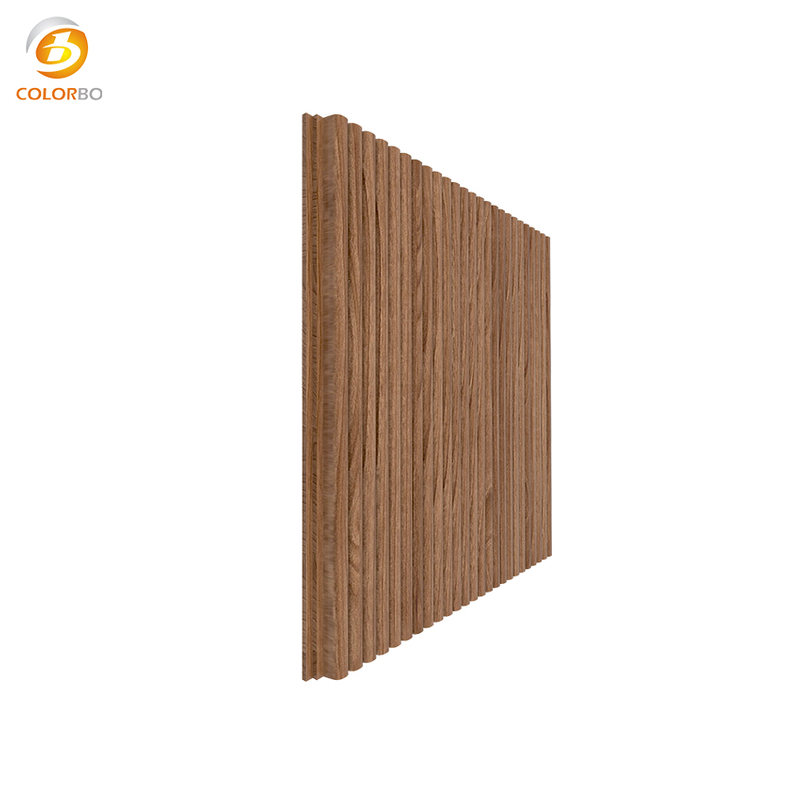

1. Acoustic panel structure:

It use high density board to manufacture, paint finishes ,with holes on back side and use black acoustic tissue which has fire rated and sound-absorbing function.

2. Advantages:

It has attractive appearance, good decorative effects, stronger stereoscopic sense, easy installation

features. Applies to both the decor and the warm wood required effect,but also reach the sound

absorption requirements. The diffuser can be used to not only the sound of the room evenly,

preventing echoes , and the standing wave effect howling, but also can improve the brightness of

the sound.

3. Absorption

QRD reflection is difference according to different woodiness and designs have different characteristic

of absorption ,we can design out according to the different requirements of customers provide

diffusion  system number and the absorption.

Products Spec

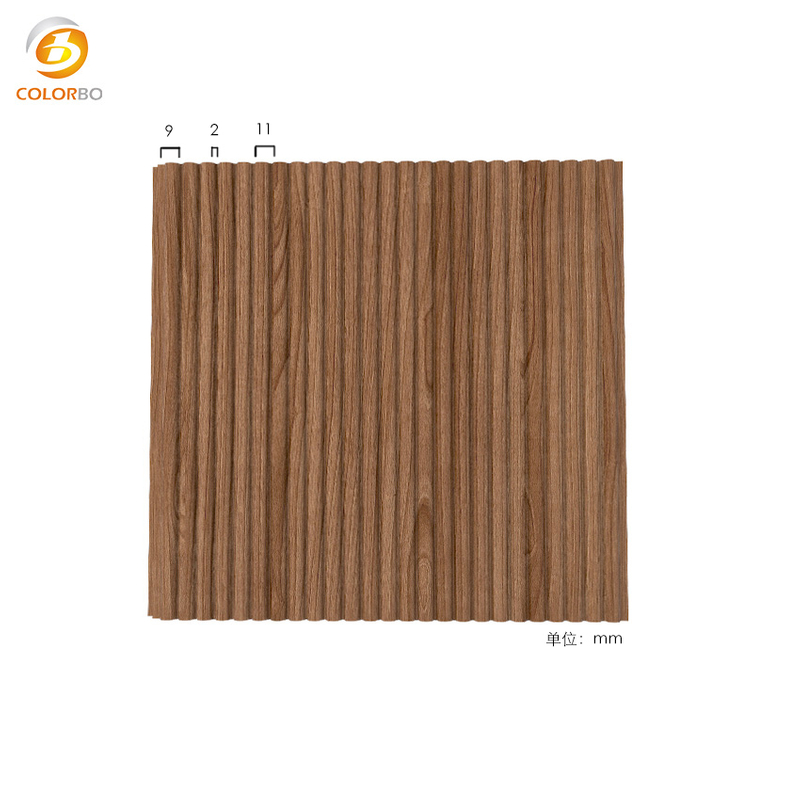

4  Spec 1:

Model :HA32

Size :2440*133mm

Thickness :15mm

Groove width :2mm

Groove pitch :9mm

Base material :ECO MDF


Base Material




Packaging and Delivery

Quantity per carton:                                                     10pcs

Parcking szie per carton:                                              2470*150*170mm

Parcking weight per carton:                                         50kg

Lead Time:                                                                     5-10 days (1 - 500 Pieces)

                                                                                       To be negotiated ( > 500 Pieces)



We are committed to the development, production and sales of all kinds of acoustic materials, providing total acoustic solutions and one-stop procurement of acoustic materials.
